Explorer 2209 Case
Explorer 2209 CaseExplorer 2209 CaseExplorer 2209 Case

Explorer 2209 Case

Interior (LWD): 220 x 160 x 95 mm
Price match this case Now £35.48 (£42.58 inc. VAT)

In stock, immediate despatch

Peli Trade Prices
Part Number:  2209.BE
Brand:  Explorer

Internal (mm)

Length 220
Width 160
Depth 95
Lid Depth 20
Base Depth 75

External (mm)

Length 246
Width 215
Depth 112

Weight & Capacity

Weight, Empty 0.88 kg
Weight, inc. Foam 0.99 kg
Volume 3.30 lt
Buoyancy Max 2.30 kg
Range Temp -33/90°C


STANAG 4280 (edition 2)
Defence Standard 81-41 (part 3) issue 4
Download certificate (PDF)
a 3D Drawing of an explorer case with arrows showing the width, length and depth of the case

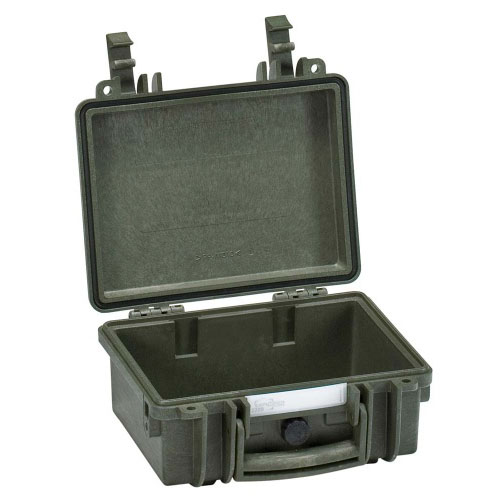

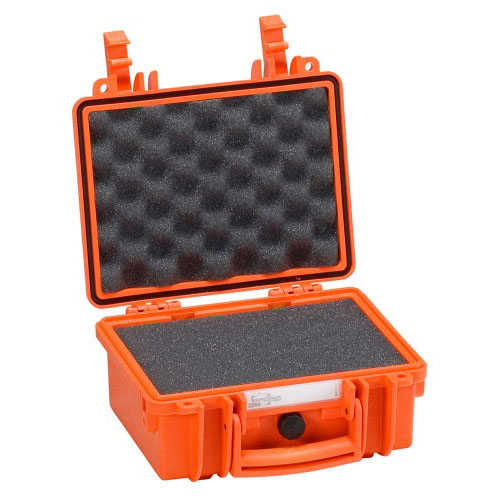

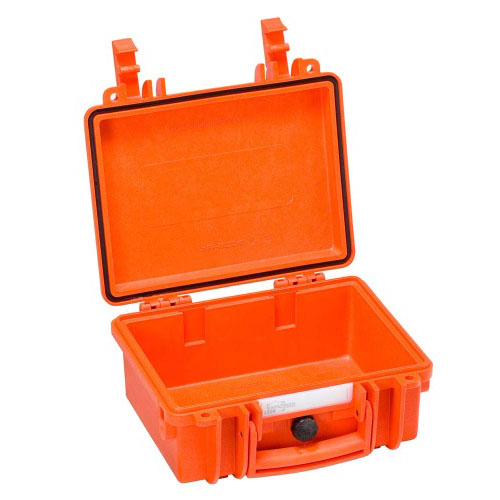

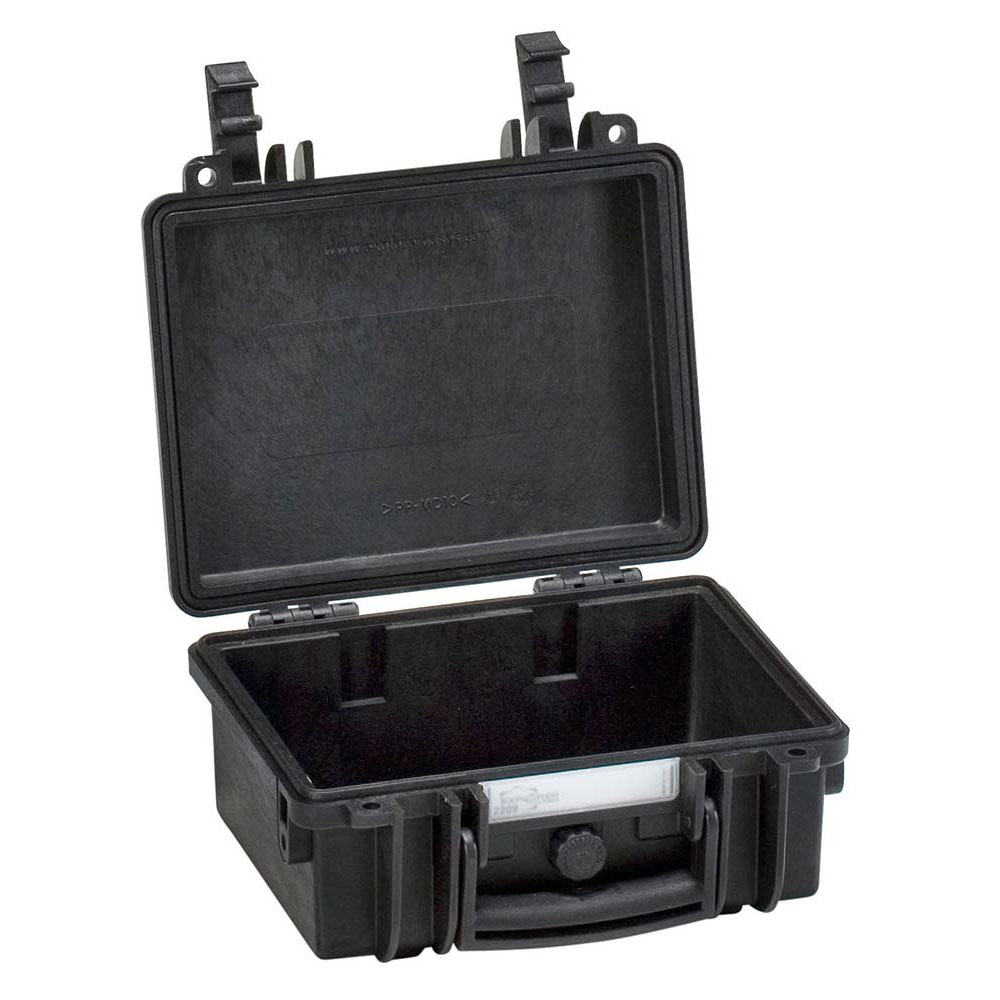

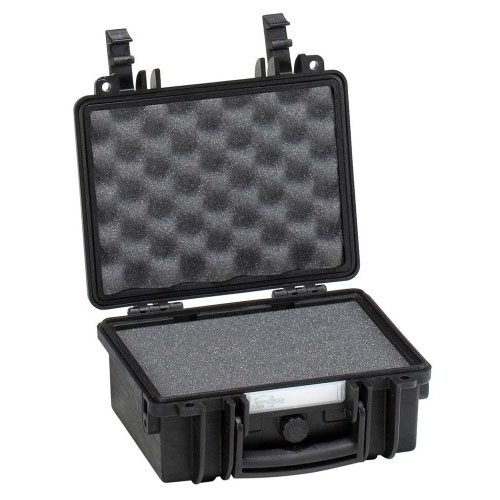

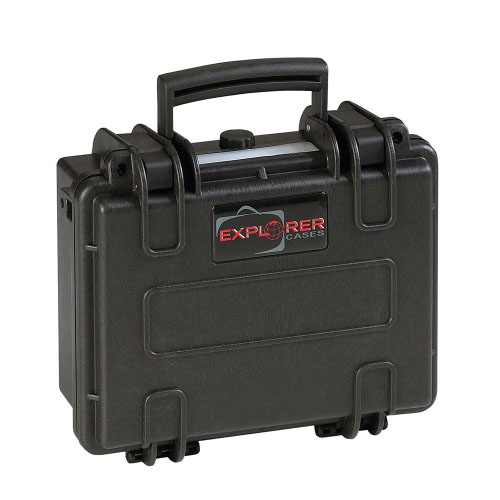

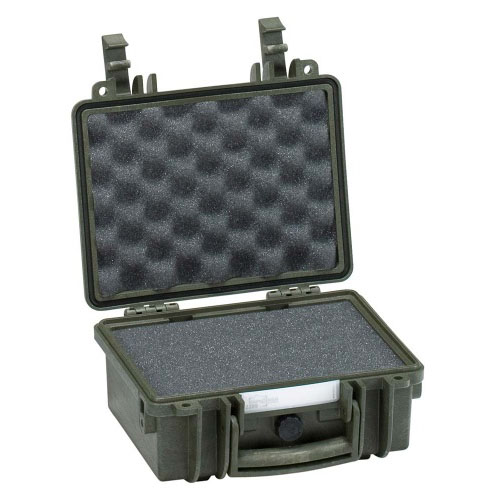

The Explorer 2209 Case is one of the compact cases in the Explorer range. Constructed of an ultra-durable and tough copolymer polypropylene, this waterproof case is compact, lightweight and ideally suited to protect cameras and other fragile equipment while on the move. Available in three colours - black, olive drab green and orange - it can be ordered empty or with a foam interior from Cases UK.

The Explorer 2209 Case is constructed with a neoprene O-ring seal to ensure of a very reliable, watertight fit between the two case halves, whilst a manual pressure equalisation valve prevents vacuum lock. The Explorer 2209 Case can be used along with an optional shoulder strap to provide comfort whilst carrying (sold separately). The corrosion resistant hinges ensure of a time-proof opening that can withstand a wide range of volatile situations and environments. Incredibly hard-wearing, solid latches ensure of a secure locking system that is capable of withstanding heavy blows without breaking open. Internal slots for optional panel mounting brackets or panel mounting rings are also present, enabling you to fully customise and make the most out of your Explorer Case.

Explorer Cases are known for manufacturing strong, rugged products that are highly resistant to impact, water, dust, sand, corrosion and humidity, whilst also capable of withstanding extreme temperatures between the range of -33°C and 90°C. The Explorer 2209 is designed and manufactured in Europe and is an excellent solution for protecting smaller, potentially fragile equipment.

  • close up of explorer 2209 cases Corrosion Proof Metal Hinges with Lid Stay Features

    Corrosion Proof Metal Hinges with Lid Stay Features

  • close up of explorer 2209 cases Internal Slots for Optional Panel Mounts or Rings

    Internal Slots for Optional Panel Mounts or Rings

  • close up of explorer 2209 cases Latch


  • close up of explorer 2209 cases Manual Pressure Release Valve

    Manual Pressure Release Valve

  • close up of explorer 2209 cases Optional Shoulder Strap

    Optional Shoulder Strap (Universal)

  • Man writing on a PVC Waterproof Removable ID Label from a Explorer 2209 case

    PVC Waterproof Removable ID Label

  • close up of explorer 2209 cases sealing o-ring

    Sealing O-Ring

  • close up of explorer 2209 cases Watertight


Custom Foam Inserts

Perfect-fit protection for your equipment

Custom foam inserts are an optional extra, popular with many of our customers.

  • Manufactured to fit the precise shape of your equipment, giving you an exceptionally high level of protection.
  • With coloured foam & laser etching we can extend your brand from the outside of the case to the inside.
  • Colour contrasting can be used to help you see at a glance when a particular tool or instrument is missing.

Read more about Custom Foam Inserts »

To discuss your requirements, why not give us a call:

01275 866 366

custom foam inserts for Peli cases

Be the first to Write a Review for this item!

2209 Foam Set

2209 Foam Set£11.33

For Explorer Case
