Explorer 5117 Case
Explorer 5117 CaseExplorer 5117 CaseExplorer 5117 Case

Explorer 5117 Case

Interior (LWD): 517 x 277 x 173 mm
Price match this case Now £123.18 (£147.82 inc. VAT)

In stock, immediate despatch

Peli Trade Prices
Part Number:  5117.BE
Brand:  Explorer

Internal (mm)

Length 517
Width 277
Depth 173
Lid Depth 50
Base Depth 123

External (mm)

Length 546
Width 347
Depth 197

Weight & Capacity

Weight, Empty 3.80 kg
Weight, inc. Foam 4.50 kg
Volume 24.70 lt
Buoyancy Max 15.80 kg
Range Temp -33/90°C


STANAG 4280 (edition 2)
Defence Standard 81-41 (part 3) issue 4
Download certificate (PDF)
a 3D Drawing of an explorer case with arrows showing the width, length and depth of the case

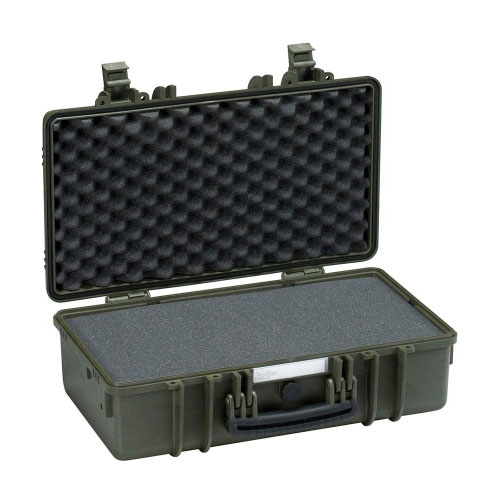

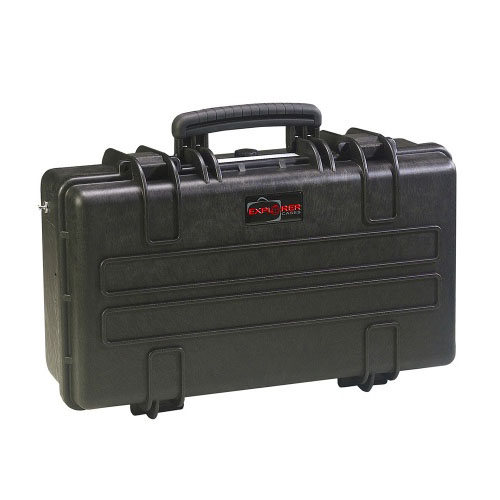

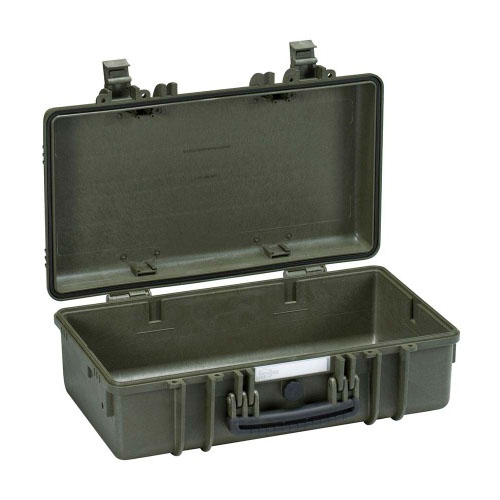

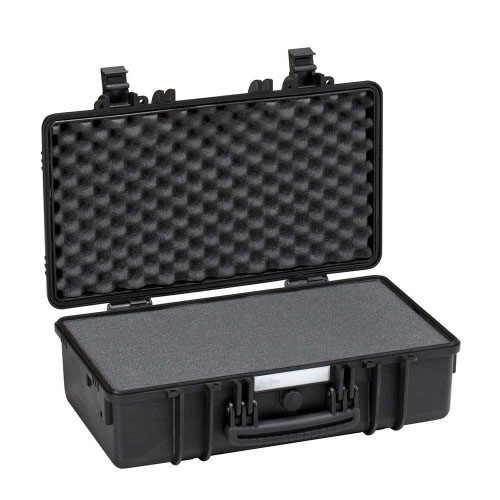

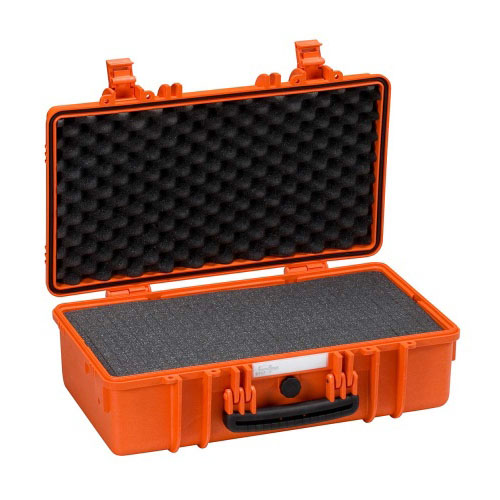

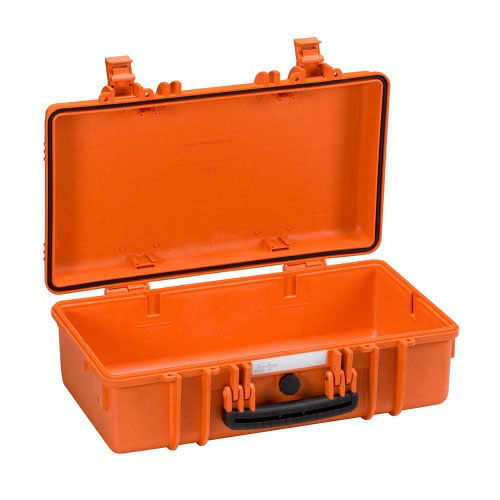

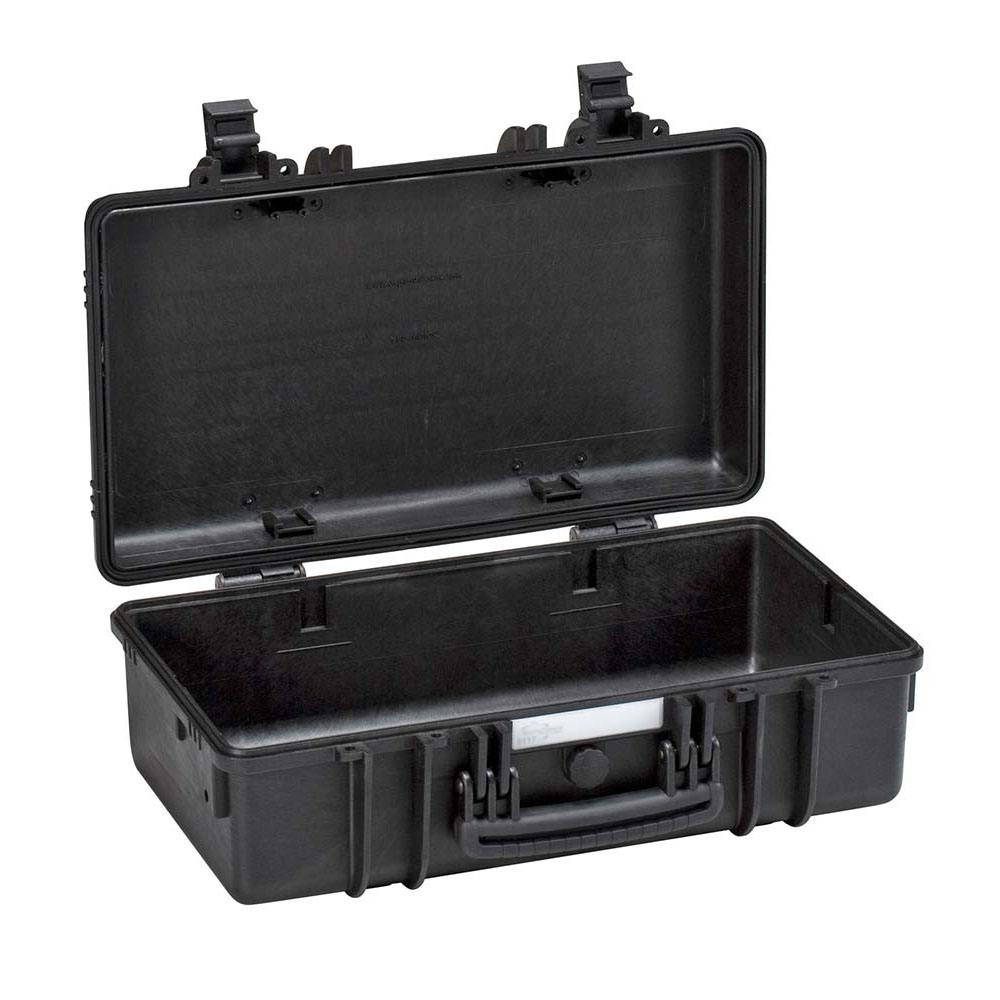

The Explorer 5117 Case is a crush-proof medium-sized case with reinforced corners and an ergonomic rubber handle. This highly resistant waterproof case is ideal for carrying and protecting all sorts of medium sized equipment. Constructed of an ultra-durable and tough copolymer polypropylene, this waterproof case is compact, lightweight and ideally suited to protect cameras and other fragile equipment while on the move. Available in three colours - black, military green and orange - it can be ordered empty or with a foam interior from Cases UK.

The Explorer 5117 Case is constructed with a neoprene O-ring seal to ensure of a very reliable, watertight fit between the two case halves, whilst a manual pressure equalisation valve prevents vacuum lock. The Explorer 5117 Case can be used along with an optional shoulder strap to provide comfort whilst carrying (sold separately). The corrosion resistant hinges ensure of a time-proof opening that can withstand a wide range of volatile situations and environments; once opened to 70 degrees, the lid can slide off after releasing a screw. Counterbalance supports at the rear of the base ensure that the case doesn't topple over. Incredibly hard-wearing, solid latches ensure of a secure locking system that is capable of withstanding heavy blows without breaking open. Internal slots for optional panel mounting brackets or panel mounting rings are also present, enabling you to fully customise and make the most out of your Explorer Case.

Explorer Cases are known for manufacturing strong, rugged products that are highly resistant to impact, water, dust, sand, corrosion and humidity, whilst also capable of withstanding extreme temperatures between the range of -33°C and 90°C. The Explorer 5117 is designed and manufactured in Europe and is an excellent solution for protecting up to medium sized, potentially delicate and fragile kit.

  • Close up of explorer 5117 cases Corrosion Proof Metal Hinges with Lid Stay Features

    Corrosion Proof Metal Hinges with Lid Stay Features

  • Close up of explorer 5117 cases Internal Slots for Optional Panel Mounts or Rings

    Internal Slots for Optional Panel Mounts or Rings

  • Close up of explorer 5117 cases Manual Pressure Release Valve

    Manual Pressure Release Valve

  • Close up of explorer 5117 cases Optional Shoulder Strap

    Optional Shoulder Strap (Universal)

  • Man writing on a PVC Waterproof Removable ID Label from a Explorer case

    PVC Waterproof Removable ID Label

  • Close up of explorer 5117 cases sealing o-ring

    Sealing O-Ring

  • Close up of explorer 5117 cases lid to show how the lid can slide off

    Lid can be set to Slide Off

  • Close up of explorer 5117 cases Fixing Points on Lid

    Fixing Points on Lid

  • Close up of explorer 5117 cases Jam-free Latches with Easy-Opening Mechanism

    Jam-free Latches with Easy-Opening Mechanism

  • Close up of explorer 5117 cases Soft-grip Rubber Handle

    Soft-grip Rubber Handle

  • scuba diver holding a yellow explorer case showing how watertight the case is


  • Great white shark biting an orange explorer case in the sea

    Made to Protect

Custom Foam Inserts

Perfect-fit protection for your equipment

Custom foam inserts are an optional extra, popular with many of our customers.

  • Manufactured to fit the precise shape of your equipment, giving you an exceptionally high level of protection.
  • With coloured foam & laser etching we can extend your brand from the outside of the case to the inside.
  • Colour contrasting can be used to help you see at a glance when a particular tool or instrument is missing.

Read more about Custom Foam Inserts »
