Peli 1520PF Panel Frame

Peli 1520PF Panel Frame

Fits: Peli 1520 Case
Now £29.23 (£35.08 inc. VAT)


In stock, immediate despatch

Peli Trade Prices
Part Number:  1520-300-110E
Brand:  Peli

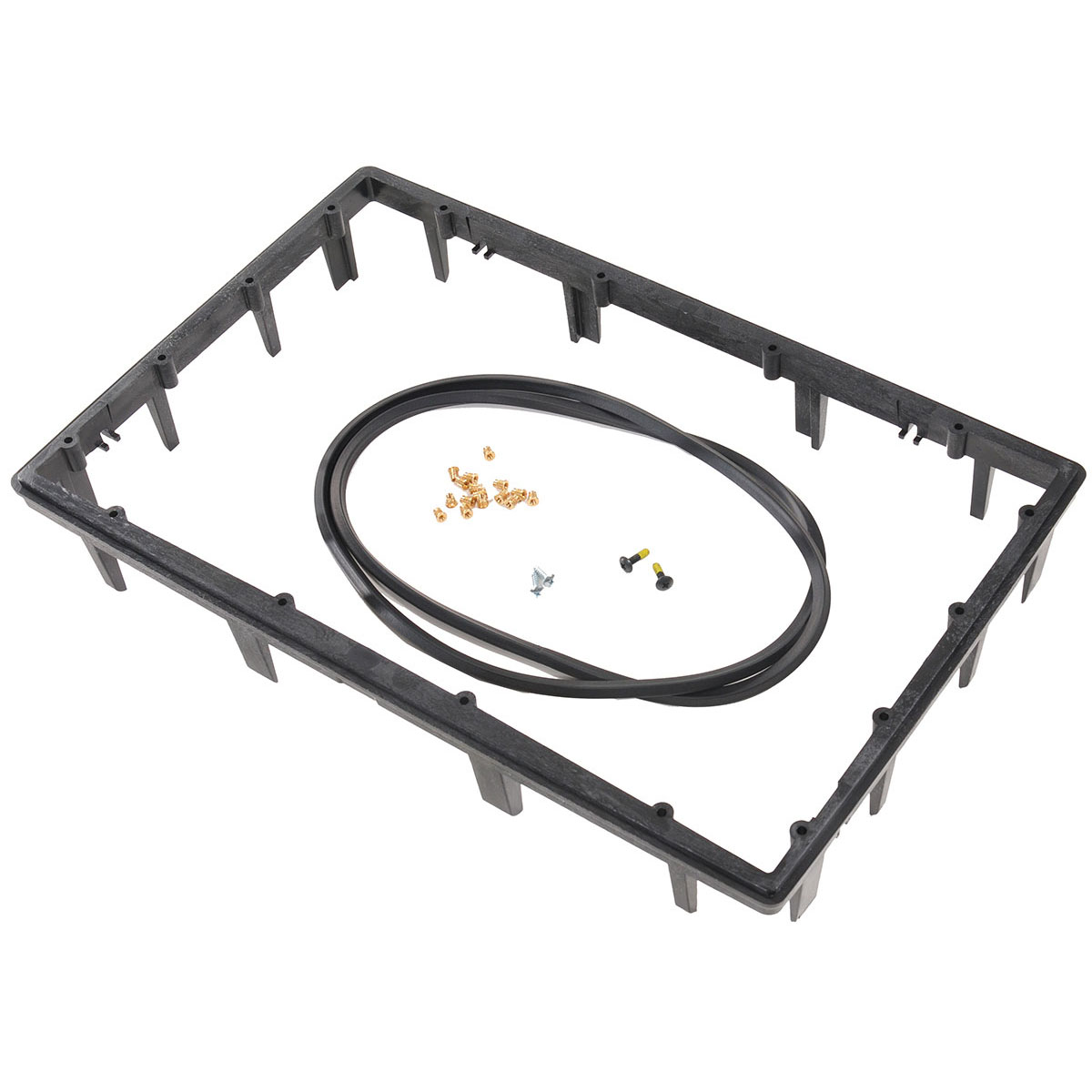

1520PF Panel Frame for the Peli 1520 Case. Kit includes a frame, O-ring, special adhesive package and brass inserts.

How to install a Panel Frame into a Peli Case

  1. Ensure that the frame is correctly oriented prior to installation. Check for the model identifier and the word 'front' (e.g. '1450 front'). The panel frame will need to be installed with these characters closest to the front of the case. (If the frame is installed in reverse, the mounting screws will protrude through the case as they are oriented to match the external ribs).
  2. To install the brass inserts, place the frame face down (so the model identifier is facing down). Place the non-shoulder small end of the insert into the hole and push it in with a Phillips screwdriver until it's fully seated on the shoulder.
  3. To secure the frame to the case, insert the frame into the case until it's fully seated on the internal ribs. Next, insert a mounting screw (supplied with the kit) into the hole and press the screw firmly as you turn the screwdriver to start self-tapping. Continue to turn until fully seated or use a 90° drill motor.
  4. Install the o-ring into the channel between the frame and the case. The o-ring must be fully seated.
  5. Install your custom panel. Your panel should completely cover the o-ring for maximum fluid and dust resistance. Install the screws (into brass inserts) by hand, and DO NOT APPLY PRESSURE. The fit of the insert to the frame was designed for easy installation by hand, without specialised tools. Excess pressure risks pushing the brass inserts back out the other side.
