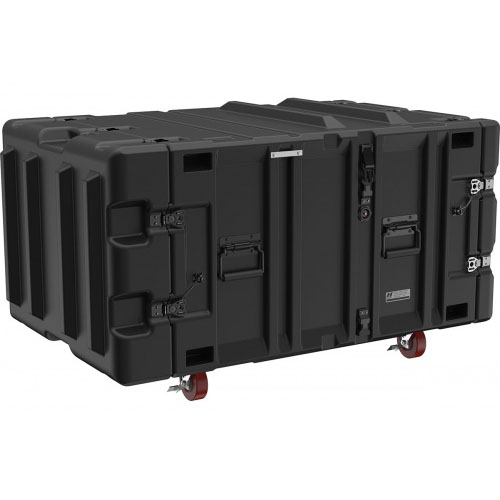

Peli Classic-V 7U Rack Mount Case
Peli Classic-V 7U Rack Mount Case
Peli Classic-V 7U Rack Mount Case
Peli Classic-V 7U Rack Mount Case

Peli Classic-V 7U Rack Mount Case

Interior (LWD): 838 x 483 x 311 mm
£2,233.06
(£2,679.67 inc. VAT)
+
Contact us to check availability

FREE UK Delivery

Order by 2pm for free next day delivery to mainland UK

Seen it cheaper?

We price match most cases, so let us know

Business customers

For great discounts and bespoke support, open a Trade Account

Code: CLASSIC-V-7U-M6
Information

Rack (mm)

Rack Length 838
Rack Width 483
Rack Height 311

External (mm)

Length 1163
Width 686
Height 523

Int. Lid Depth (mm)

Front Lid 64
Back Lid 133

Weight & Capacity

Weight 29.48 kg
Weight Capacity 45-77 kg
Rack Units 7U
Shipping Cube 0.42 m3
a 3D Drawing of a peli hardigg classic v 7u rack mount case with arrows showing the width, length and depth of the case

The Classic-V 7U from Peli-Hardigg is an off-the-shelf rack mount case with professional grade features engineered to provide secure transport for rack mountable electronics and ultra-fragile equipment. The Classic-V Series has a 33-inch (838 mm) depth frame and has longer shock mounts and a larger sway space between the rack and shell, ideal for protecting expensive and delicate equipment such as circuit boards and calibrated instruments. The hardware and shell of the case comes with an anti-reflective finish to provide an understated look.

The Classic-V 7U case also has four removable heavy-duty castors with stainless-steel ball bearings, along with stainless steel handles with a rubberised grip for hassle-free manoeuvrability. Moulded-in columnar ribs create a rigid shell and also provide secure stacking of same-size cases, whilst practical and convenient coupling latches maximise the prevention of toppling.

The mounting points for electronics equipment are supplied in the universal standard square hole configuration for maximum compatibility, whilst the metric M6 mounting clips create a hassle-free mounting solution. Whilst removed, the case lids can be attached to the side using the designated hanger locations, preventing the case from being placed on the floor in extreme environments. All hardware featured on the Classic-V range is recessed in order to prevent opening upon impact that could compromise sealing and security.

Manual pressure equalisation valves enable air pressure in the case to be equalised to the atmosphere, preventing vacuum-lock and ensuring that it remains easy to open at all times at any altitude. Lids include a fully sealed O-ring gasket that works perfectly with the ever-reliable anti-shear twist locks to further protect your electronics by making the case fully watertight, whilst preventing lid separation upon heavy impact. All cases within the Classic-V Rack range are RoHS and REACH compliant.

  • Manual equalisation valve
  • Four removable heavy-duty castors with stainless-steel ball bearings
  • Designated lid hanger locations
  • Highly secure anti-shear twist locks
  • Long shock mounts and large sway space between the rack and shell
Features

  • Close up of peli hardigg classic v 7u rack mount cases Fixed square hole frame for universal equipment fit

    Fixed square hole frame for universal equipment fit

  • Close up of peli hardigg classic v 7u rack mount cases Shock mounts for delicate equipment

    Shock mounts for delicate equipment

  • Close up of peli hardigg classic v 7u rack mount cases O-ring gaskets on lid for a fully watertight seal

    O-ring gaskets on lid for a fully watertight seal

  • Close up of peli hardigg classic v 7u rack mount cases Manual purge valve equalises air pressure to prevent vacuum lock

    Manual purge valve equalises air pressure to prevent vacuum lock

  • Close up of peli hardigg classic v 7u rack mount cases Positive anti-shear locks which prevent lid separation upon impact

    Positive anti-shear locks prevent lid separation upon impact

  • Close up of peli hardigg classic v 7u rack mount cases 4 removable heavy duty bottom castors

    4 removable heavy duty bottom castors

  • Close up of peli hardigg classic v 7u rack mount cases Stainless steel handles

    Stainless steel handles

  • Close up of peli hardigg classic v 7u rack mount cases Coupling catches for secure stacking

    Coupling catches for secure stacking

  • Close up of peli hardigg classic v 7u rack mount cases 2-inch front lid, 5-inch rear lid

    2-inch front lid, 5-inch rear lid

  • Close up of peli hardigg classic v 7u rack mount cases Metric M6 clip nuts for more flexibility in mounting equipment

    Metric M6 clip nuts for more flexibility in mounting equipment

  • Close up of peli hardigg classic v 7u rack mount cases Universal mounting

    Universal mounting - industry-standard square hole pattern

  • Close up of peli hardigg classic v 7u rack mount cases Stacking ribs which secure non-slip stacking on matched size cases

    Stacking ribs secure non-slip stacking on matched size cases

  • Close up of peli hardigg classic v 7u rack mount cases Lid hangers for lid storage while in use

    Lid hangers for lid storage while in use

  • Close up of peli hardigg classic v 7u rack mount cases Thicker reinforced corners & edges for added impact protection

    Thicker reinforced corners & edges for added impact protection

  • Close up of peli hardigg classic v 7u rack mount cases Anti-reflective black hardware

    Anti-reflective black hardware

  • Close up of peli hardigg classic v 7u rack mount cases Recessed hardware that protecs from impact and snag-free transport

    Recessed hardware protected from impact, & snag-free transport
