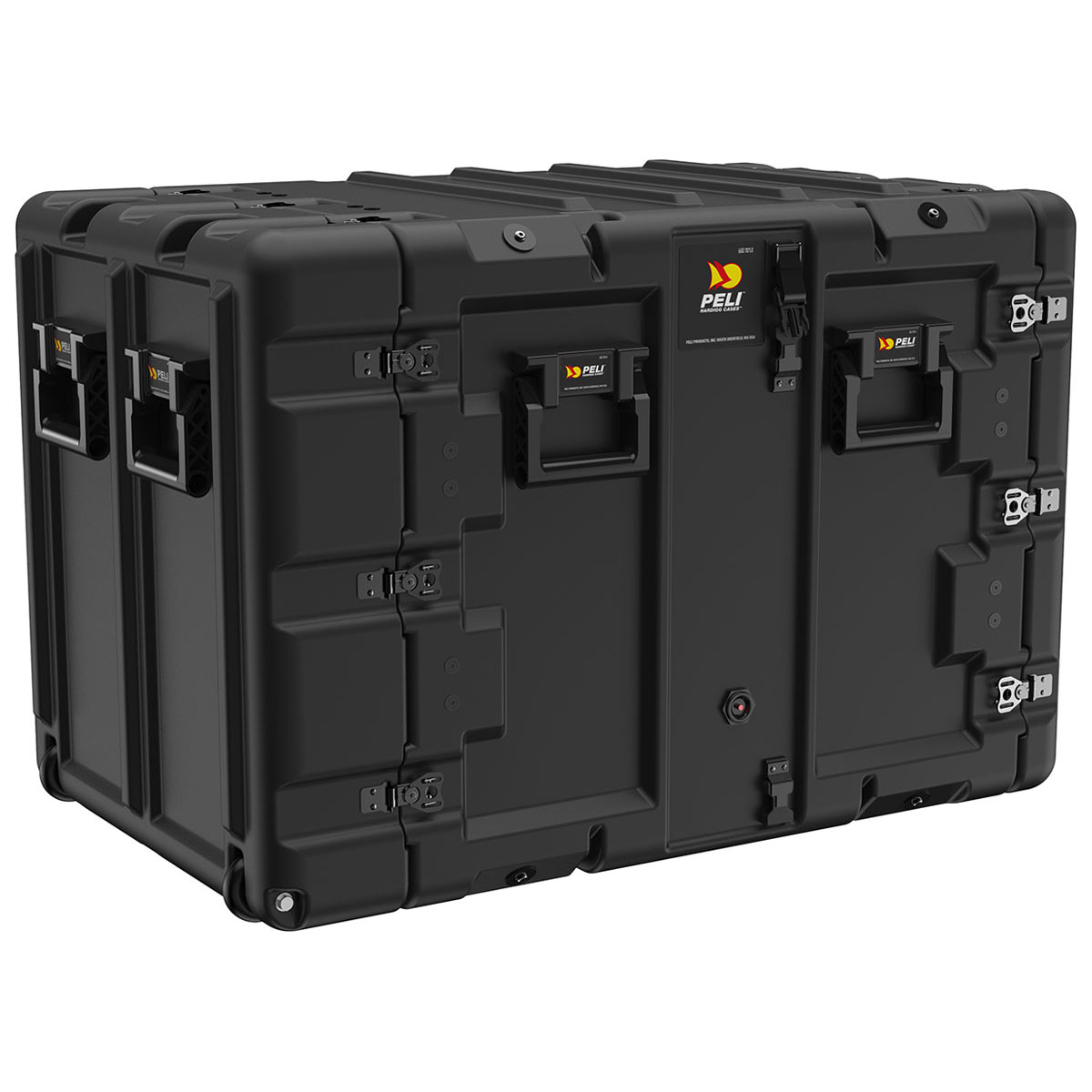

Peli Super-V 11U Rack Mount Case
Peli Super-V 11U Rack Mount CasePeli Super-V 11U Rack Mount CasePeli Super-V 11U Rack Mount CasePeli Super-V 11U Rack Mount Case

Peli Super-V 11U Rack Mount Case

Interior (LWD): 610 x 483 x 489 mm
Now £1,742.94 (£2,091.53 inc. VAT)

Availability:



Contact us to check availability

Part Number:  SUPER-V-11U-M6
Brand:  Peli

Rack (mm)

Rack Length 610
Rack Width 483
Rack Height 489

External (mm)

Length 978
Width 719
Height 645

Int. Lid Depth (mm)

Front Lid 56
Back Lid 132

Weight & Capacity

Weight 31.30 kg
Rack Units 11U
Shipping Cube 0.38 m3

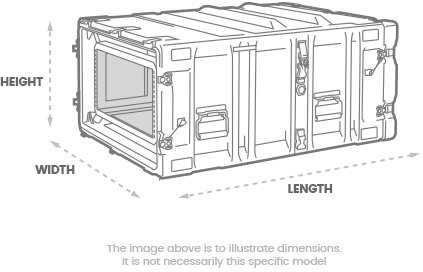

a 3D Drawing of a peli hardigg super v 11u rack mount cases with arrows showing the width, length and depth of the case

Not quite right?

Click here to choose a different size »

The Super-V 11U from Peli-Hardigg is a rack mount case with professional grade features engineered to securely transport your fragile equipment. It includes a shock mounted high-strength 19-inch steel frame with 24-inch (610 mm) depth. It has one 5.2 inch and one 2.2 inch lid with handles on the latter and moulded-in rear edge castors with stainless-steel ball bearings, making it easy to transport your gear.

Mounting of electronic equipment into these cases is straightforward thanks to the universal mounting style of square, industry-standard mounting holes, providing peace of mind and compatibility. Shock absorbing suspension mounts ensure the safety of intricate and delicate components such as circuit boards, improving the lifespan and durability of your expensive equipment.

It also includes highly comfortable, ergonomically designed grip plastic handles and lid hangers for storing the lids while in use to prevent from placing on the floor in volatile conditions, whilst convenient coupling catches prevent cases from toppling once stacked. An anti-reflective black finish to its hardware ensures of a more understated look.

An ultra-tight seal is achieved using a super-reliable gasket that works perfectly with the anti-shear locks to prevent separation upon impact. Manual pressure equalisation valves ensure that the case can be opened at any given altitude through preventing vacuum lock.

The case is exceptionally strong with moulded-in ribs to provide secure non-slip stacking of matched-size cases. It is RoHS and REACH compliant and designed to meet the requirements of Def Stan 81-41 Level J, Mil Standard 810, STANAG 4340 and other European standards.


Key features:

  • Anti-shear locks prevent separation upon impact

  • Shock absorbing suspension mounts

  • Manual pressure equalisation valves

  • Universal mounting style of square, industry-standard mounting holes for electronics

  • Moulded-in rear edge castors with stainless-steel ball bearings



  • Close up of peli hardigg super v 11u rack mount cases Fixed square hole frame for universal equipment fit

    Fixed square hole frame for universal equipment fit

  • Close up of peli hardigg super v 11u rack mount cases Shock mounts for delicate equipment

    Shock mounts for delicate equipment

  • Close up of peli hardigg super v u 11u rack mount cases 2-inch front lid, 5-inch rear lid

    2-inch front lid, 5-inch rear lid

  • Close up of peli hardigg super v 11u rack mount cases Moulded in rear edge castors

    Moulded in rear edge castors

  • Close up of peli hardigg super v 11u rack mount cases Heavy-duty spring loaded handles which lay flat

    Heavy-duty spring loaded handles lay flat

  • Close up of peli hardigg super v 11u rack mount cases Handles on the lid for ease of movement

    Handles on the lid for ease of movement

  • Close up of peli hardigg super v 11u rack mount cases Lid hangers for lid storage while in use

    Lid hangers for lid storage while in use

  • Close up of peli hardigg super v 11u rack mount cases Coupling catches attaching system for secure stacking

    Coupling catches attaching system for secure stacking

  • Close up of peli hardigg super v 11u rack mount cases Manual purge valve equalises air pressure to prevent vacuum lock

    Manual purge valve equalises air pressure to prevent vacuum lock

  • Close up of peli hardigg super v 11u rack mount cases O-ring gaskets on lid for a fully watertight seal

    O-ring gaskets on lid for a fully watertight seal

  • Close up of peli hardigg super v 11u rack mount cases Positive anti-shear locks which prevent lid separation upon impact

    Positive anti-shear locks prevent lid separation upon impact

  • Close up of peli hardigg super v 11u rack mount cases Thicker reinforced corners & edges for added impact protection

    Thicker reinforced corners & edges for added impact protection

  • Close up of peli hardigg super v 11u rack mount cases Universal mounting

    Universal mounting - industry-standard square hole pattern

  • Close up of peli hardigg super v 11u rack mount cases Metric M6 clip nuts for more flexibility in mounting equipment

    Metric M6 clip nuts for more flexibility in mounting equipment

  • Close up of peli hardigg super v 11u rack mount cases Anti-reflective black hardware

    Anti-reflective black hardware

  • Close up of peli hardigg super v 11u rack mount cases Stacking ribs secure non-slip stacking on matched size cases

    Stacking ribs secure non-slip stacking on matched size cases
